Kubota launches new multifunctional LX compact tractor range

Alistair
By Alistair September 18, 2021 09:26 Updated

Kubota introduces its new LX Series, a range of multi-purpose compact tractors that allow users to handle a wide variety of tasks ranging from mowing and snow clearance to materials handling and cultivations. The new LX tractor features a Stage V engine and will be available in four different models: the 35hp LX-351 Rear ROPS and LX-351 Cab, and the 40hp LX-401 Rear ROPS and LX-401 Cab, all with three-range HST transmission.

Powerful four-cylinder Kubota engines are equipped with an injection system, exhaust gas recirculation and diesel particulate filter, not only meeting the latest EU Stage V emissions standard, but also offering low fuel consumption. The large engine displacement delivers high levels of torque to ensure ample power reserves.

The modern engine cowling of the new LX Series tractors has a distinctive, dynamic design giving the operator an excellent view of the front working area. It can be opened wide to allow easy access to all maintenance points in the engine compartment.

Kubota has developed a new three-range hydrostatic transmission especially for the LX Series which is extremely quiet and guarantees precise and efficient power transmission. An auto-throttle function allows the operator to synchronise driving speed and engine speed with just one pedal. This simplifies operation, reduces noise emissions and further helps to cut fuel consumption. LX Series tractors are also equipped with smooth and responsive hydraulic power steering, making it easy to use heavy implements or perform front loader work.

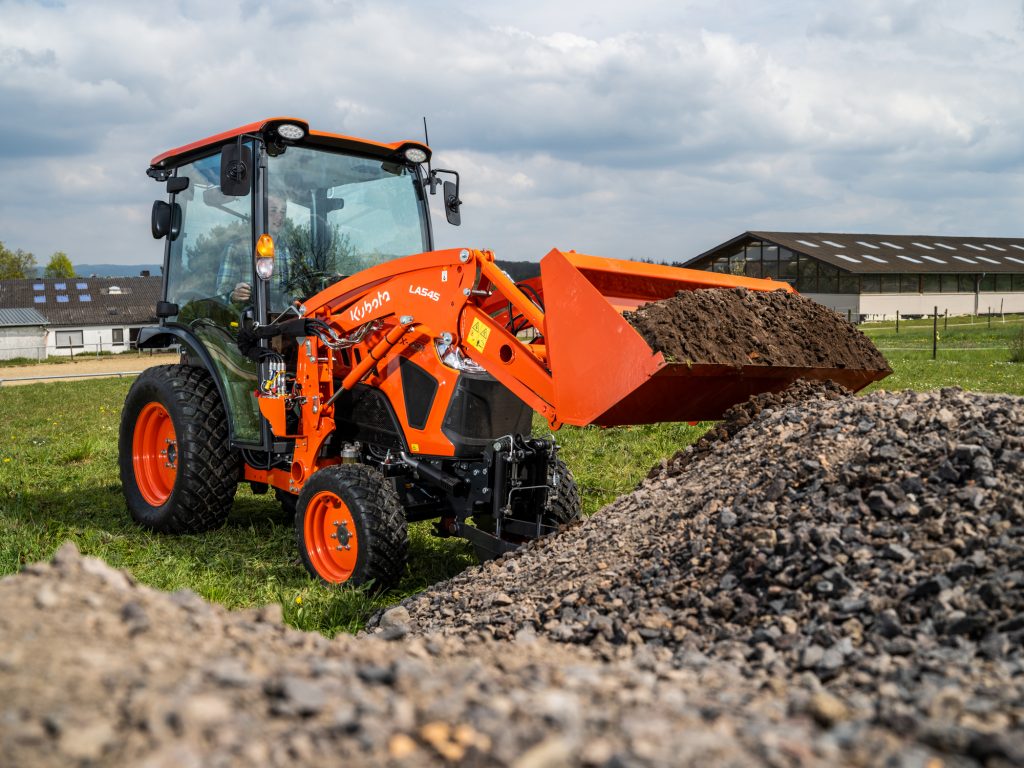

The new LA545 front loader is also available for the LX Series, featuring an optional self levelling system, and further expanding the range of tasks that can be carried out with these tractors.

Two double acting valves at the front and two double acting valves at the rear to handle the most demanding equipment are standard. A new multi-function lever is used to independently control the valves. Lifting capacity at the rear is up to 1,150kg, and a front hitch with front PTO is available as an option, a first for Kubota compacts in the UK, and offering even greater versatility.

An external switch at the rear that allows the PTO to be switched on and off from outside the cabin, a useful addition when operating PTO-driven implements such as log splitters, saws, cement mixers and so on while stationary.

The Bi-Speed system significantly improves the steering performance of the LXSeries tractors and bevel gear drive further enhances its outstanding manoeuvrability; the large steering angle giving a minimum turning radius of 2.2m.

Kubota offers a completely new cabin design for the LX Series which is easier to access and noticeably quieter when working. As standard, it comes equipped with air conditioning, a heated rear window and windscreen wipers front and rear. All frequently used levers and switches are now located to the right of the operator, while less commonly used controls are located on the left, for the most user-friendly layout yet. Security is a top priority on the LX Series and the tractors are protected by a three-digit access code.

Cabin models have a width of 1.25m and the ROPS models just 1.22m, a compact design making the LX series the machine of choice for an extensive range of applications. A wide range of tyre types, including agricultural, turf and intermediate tyres is available.

The LX series will be available from Kubota dealers in September.
